The circular tube intersecting line cutting machine system is a set of CNC system that can calculate and automatically generate the intersecting line CNC machining code for processing the intersecting line cutting of two or more tubes. By setting various process parameters and post-processing, and then generating processing code, this process can save a lot of manpower and time. And to minimize the influence of human and system factors, make the pipe seam cutting precision high, and ensure that the welding quality is more stable.
This model can be added to the 5-axis X, Y, Z, C, U, which is configured to the 3-5 axis CNC intersecting line. The X axis is the linear translation axis, Y is the main rotation axis, Z is the left and right yaw axis, and C is the front and back yaw axis. The position of the cutting torch is kept on the high point of the pipe, and the cutting of the bevel of the round pipe is realized through the angle swing of the Z axis and the C axis.
Machine structure characteristics

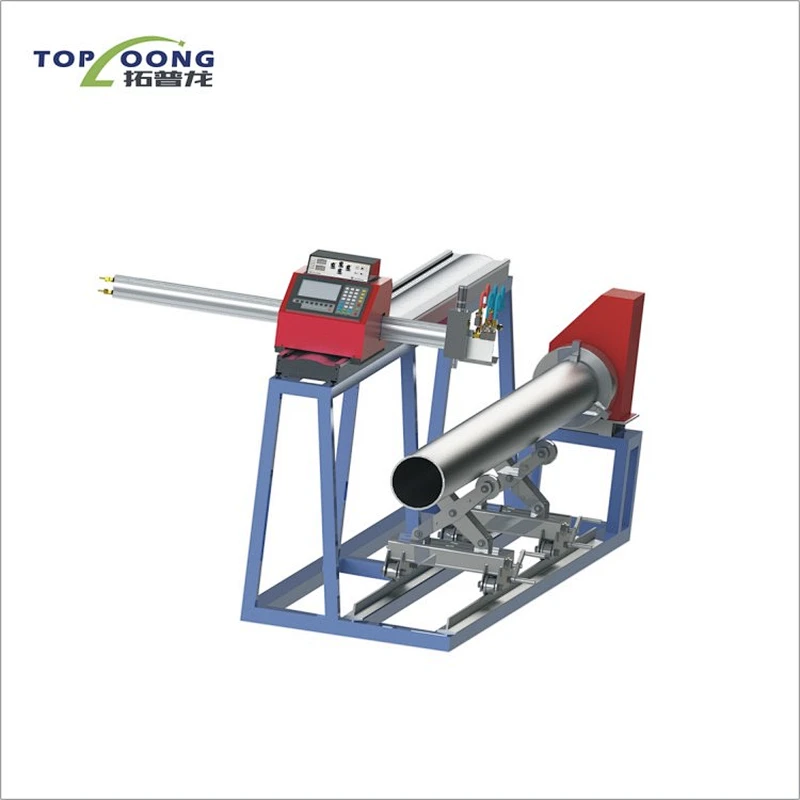

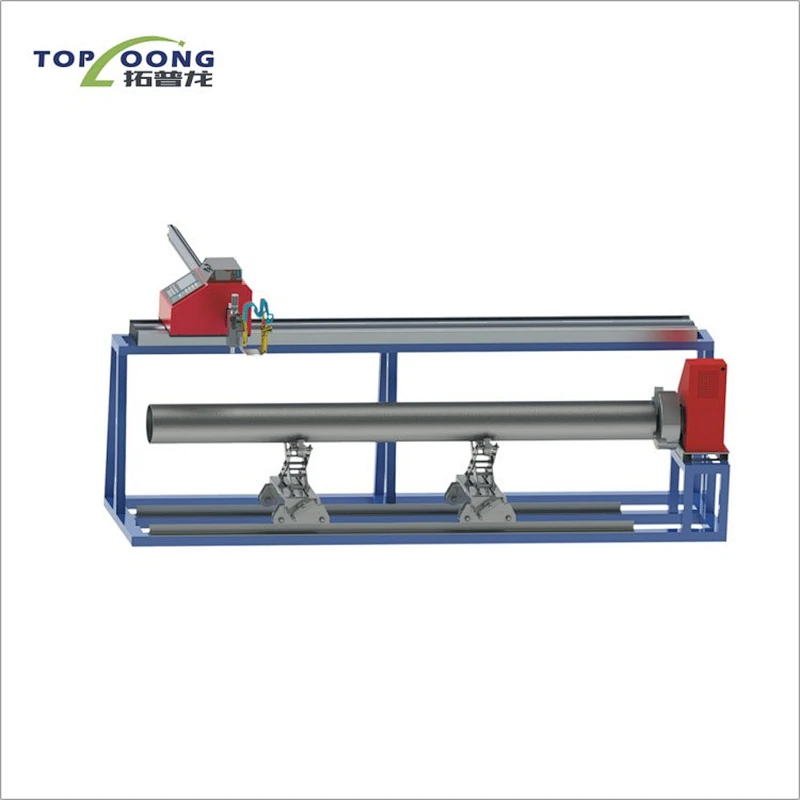

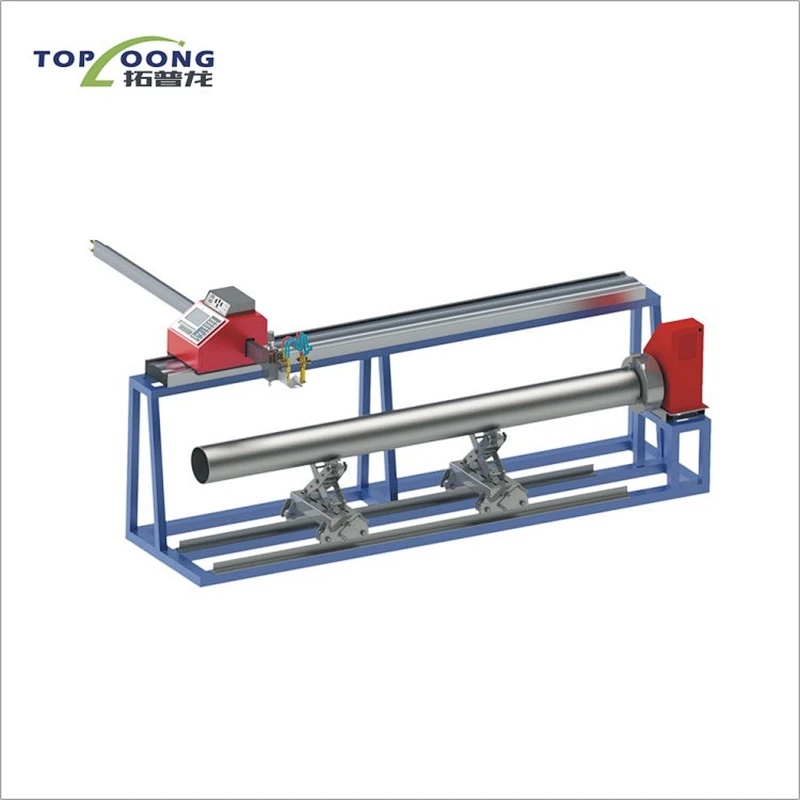

1. This machine is composed of a portable CNC cutting machine that can switch between tube and plate cutting and a tube cutting auxiliary machine. It is suitable for pipe intersecting line cutting that does not require beveling, as well as for cutting and cutting of any graphic parts of metal plates. The dual-purpose economical and practical CNC cutting machine;
2. The digital control system controls the 3-axis to realize the 2-axis linkage cutting of the pipe intersecting line, which greatly reduces the equipment manufacturing cost;
3. The main and auxiliary machines are used in combination, and they can also be used for multiple purposes after the machine is divided; the pipe and plate cutting and switching are convenient;
4. When used online, it can cut holes, grooves, cut and cut metal pipes, as well as saddle-shaped, shrimp-shaped, branch pipe intersecting line ends and other shapes.
5. It can be used for sheet metal cutting when it works as a stand-alone machine as the host computer.
6. The main shaft of the auxiliary pipe cutting machine is in the form of a through hole, with a quick chuck for mining the moon, and the pipe bracket can adjust the center height of the pipe according to the pipe diameter;
It is widely used in steel structure, pipe truss, construction engineering, pressure vessel, petroleum pipeline, ocean engineering and many other industries that require steel pipe intersecting line cutting.
