The plasma cutting machine with different working gases can cut a variety of metals that are difficult to cut by oxygen, especially for non-ferrous metals (stainless steel, carbon steel, aluminum, copper, titanium, and fetters). The cutting effect is better; its main advantage is that the cutting thickness is not Large metals, plasma cutting speed is fast, especially when cutting ordinary carbon steel thin plates, the speed can reach 5-6 times that of oxygen cutting, the cutting surface is smooth, the thermal deformation is small, and there is almost no heat-affected zone.
Plasma cutting machine, the available working gas (working gas is the conductive medium of the plasma arc, it is also the heat-carrying body, and at the same time the molten metal in the incision must be removed) has obvious effects on the cutting characteristics, cutting quality and speed of the plasma arc. Influence. Commonly used plasma arc working gases include gas, hydrogen, nitrogen, oxygen, air, water vapor and some mixed gases.
Machine structure characteristics
1. The frame adopts a fully welded structure, which is firm and reasonable, simple to operate, and durable;
2. Fast cutting speed and high precision. The cutting opening is small, neat, and there is no slag drop phenomenon. On the basis of the traditional numerical control system, the control method for cutting is improved to avoid secondary trimming processing;
3. Suitable for low-carbon steel, copper, iron, aluminum, galvanized, titanium and other metal plates;
4. The CNC system has high configuration, automatic arc ignition, stable performance, and the success rate of arc ignition is over 99%.
Specification: | Model | Cutting Thickness (Carbon steel) (mm) | Maximum Cutting Thickness | Size(mm) |
| Common Quality | Better Quality |

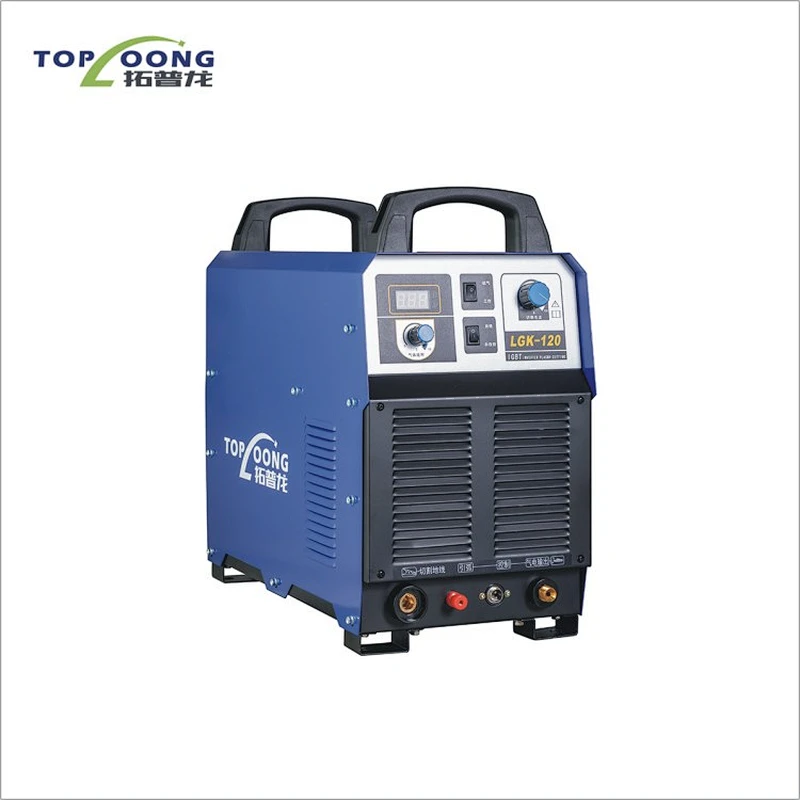

| LGK-80 | 15 | 12 | 30 | 490*235*500 |
| LGK-100 | 25 | 16 | 45 | 510*265*500 |

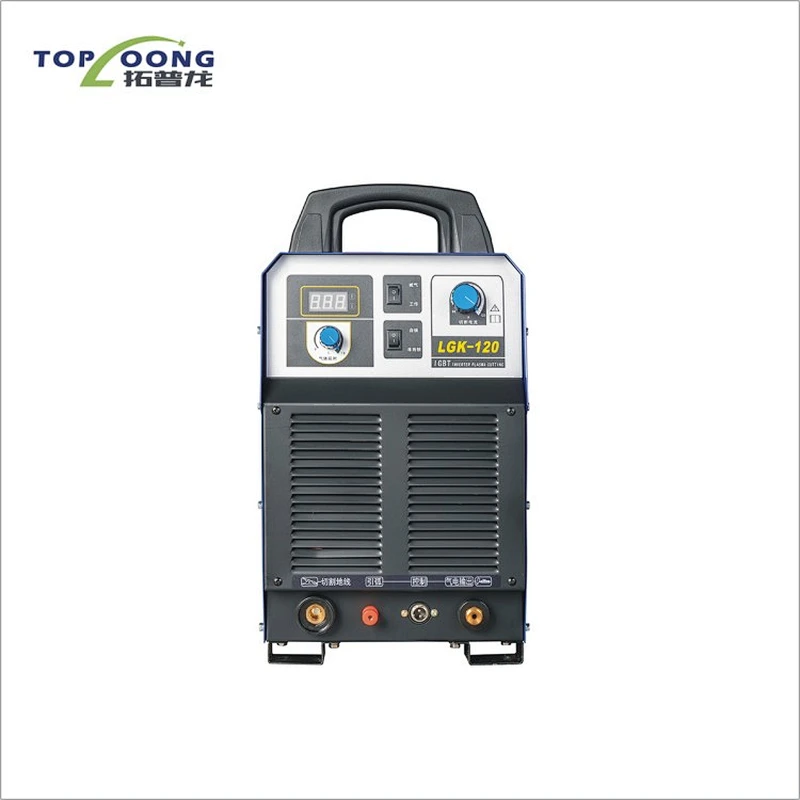

| LGK-120 | 30 | 18 | 50 | 510*265*500 |
| LGK-130 | 35 | 20 | 55 | 620*310*650 |
| LGK-160 | 40 | 22 | 60 | 650*390*810 |
| LGK-200 | 45 | 27 | 75 | 650*390*810 |
gantry steel cutting machine, gantry cutting machine, gantry profile cutting machine, gantry cutting, portable CNC cutting machine, portable plasma cutting machine, portable cnc plasma cutter, portable cnc plasma cutting machine, honeybee portable cnc cutting machine, portable table cnc cutting machine, portable cnc cutting machine table, portable cnc plasma cutting, automatic cnc cutting machine
Widely used in automobiles, locomotives, industries, general machinery, construction machinery, steel structures and other industries!
