Portable CNC Cutting Machine for Plasma / Flame
portable CNC cutting machine, portable plasma cutting machine, portable cnc plasma cutter, portable cnc plasma cutting machine, honeybee portable cnc cutting machine, portable table cnc cutting machine, portable cnc cutting machine table, portable cnc plasma cutting, automatic cnc cutting machine

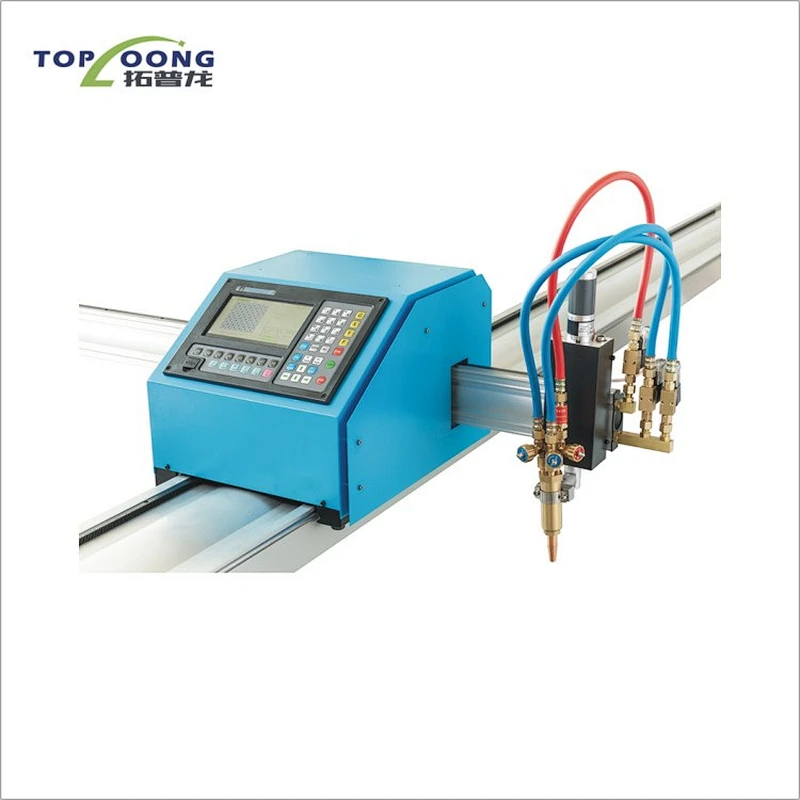

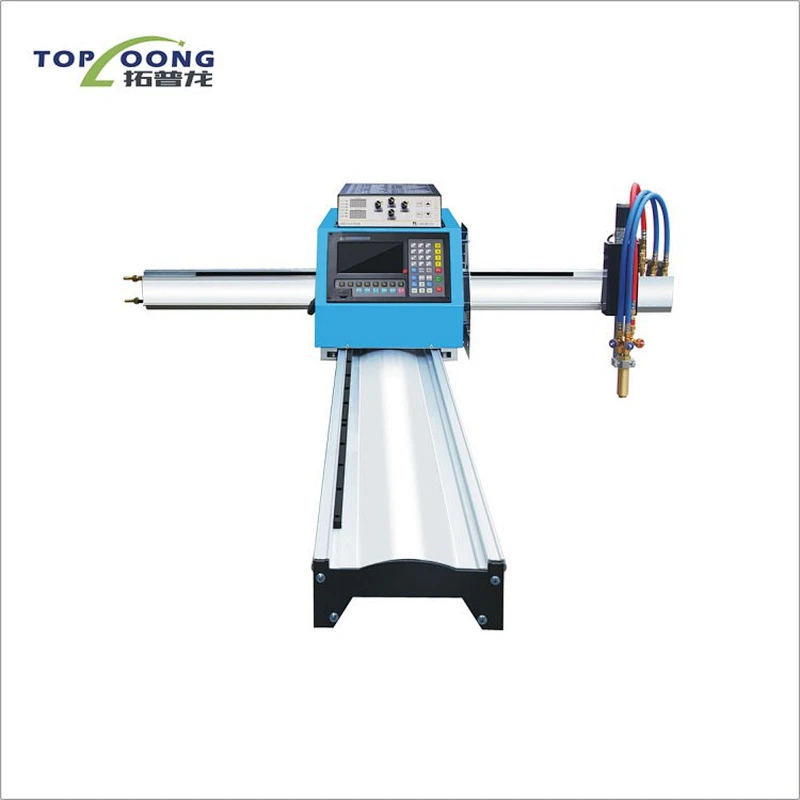

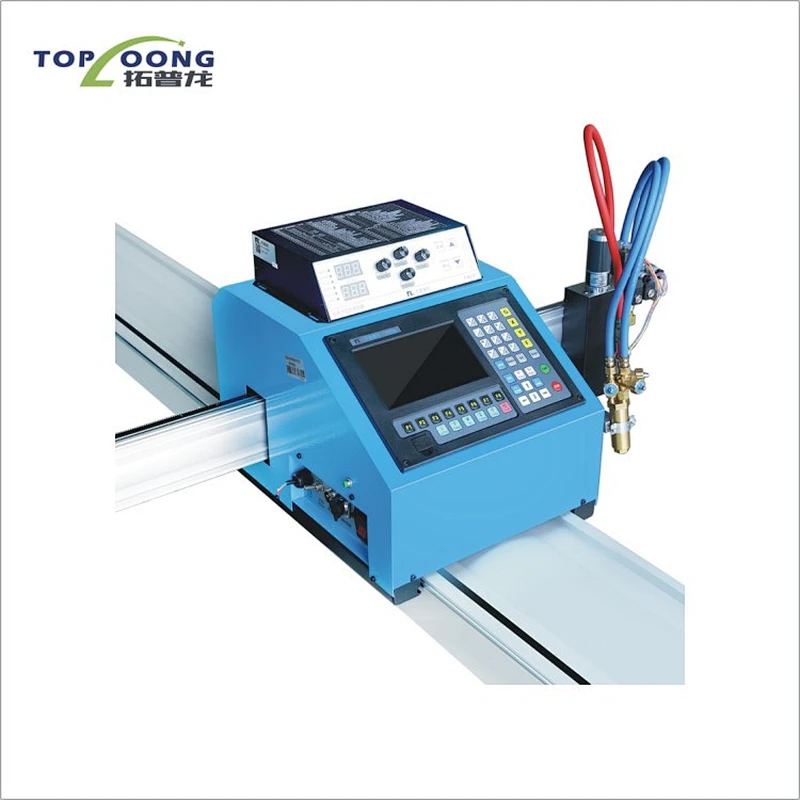

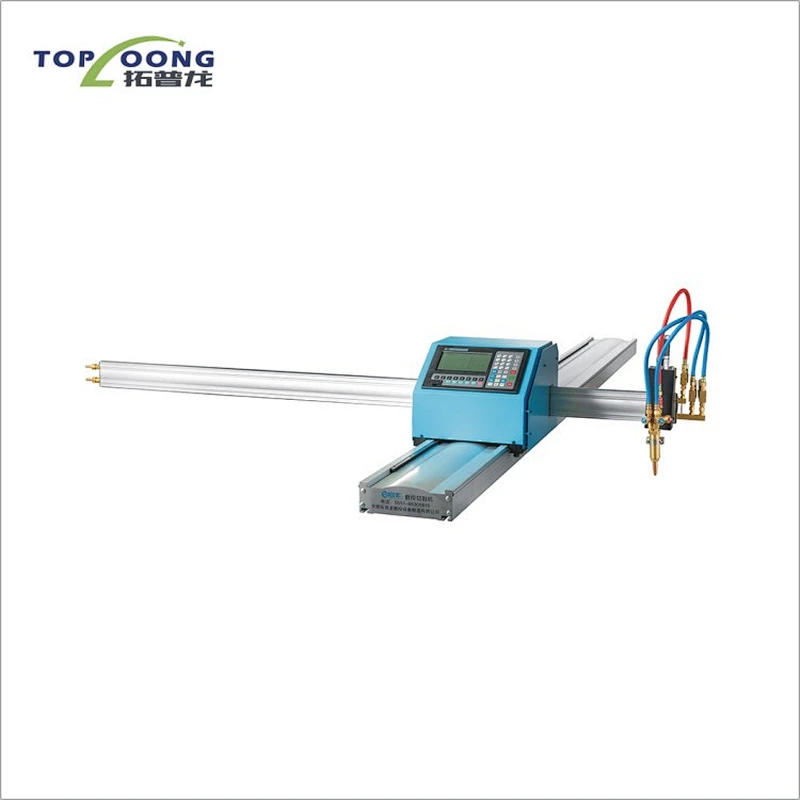

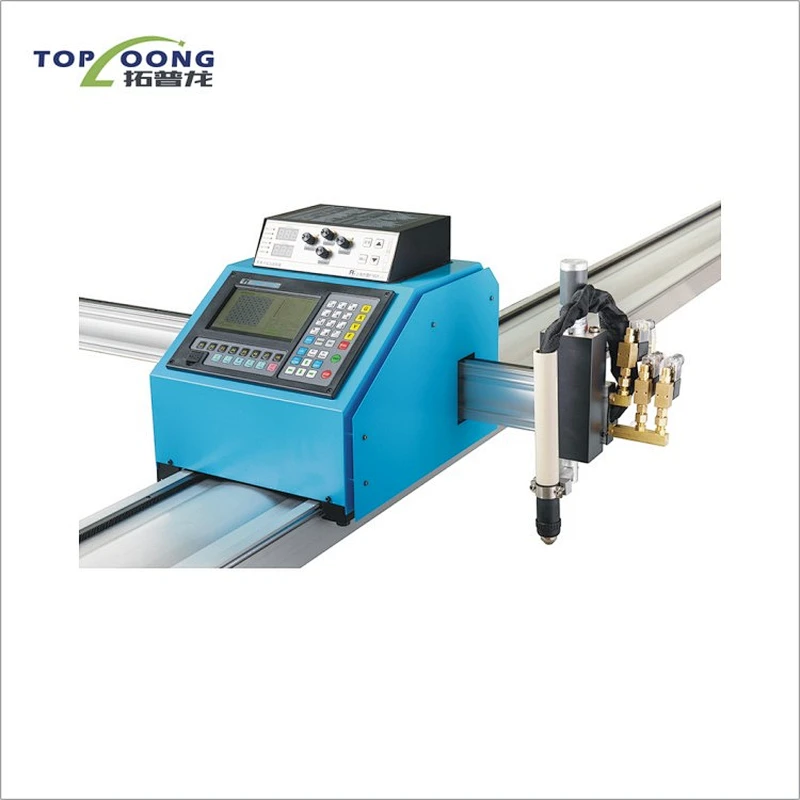

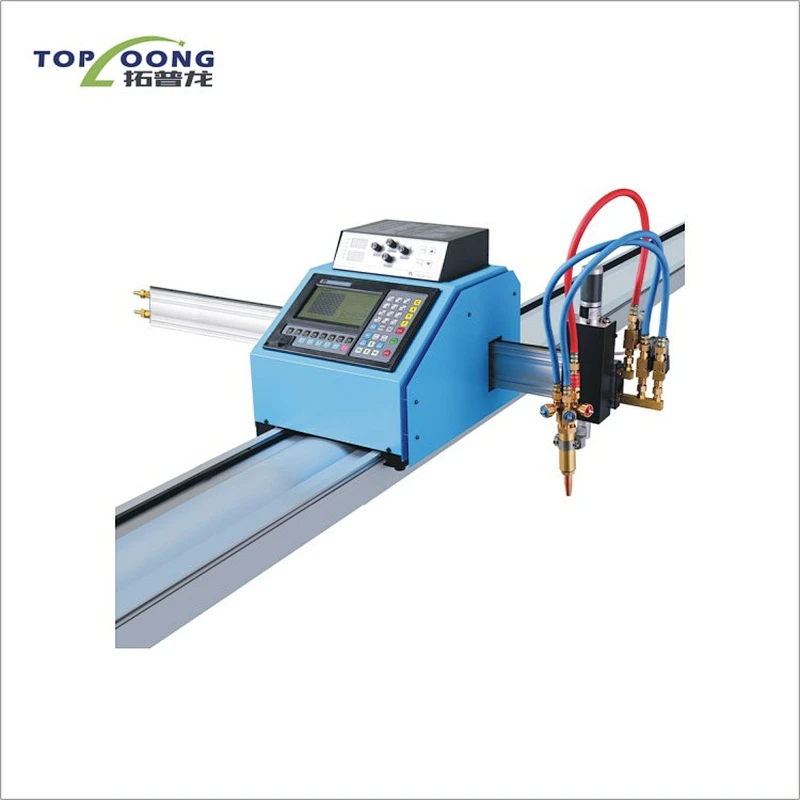

The portable CNC cutting machine has a compact and micro structure as a whole. It is an ideal upgrade product to replace handheld flame cutting equipment, handheld plasma cutting devices, profiling cutting machines, and semi-automatic cutting carts. The use is as flexible and convenient as the cutting trolley, and it can be moved at will without occupying a fixed site. It is a numerical control equipment specially used for sheet metal blanking. It is suitable for indoor and outdoor cutting, and can cut various metal materials according to any pattern. The roughness of the cut can reach 25 (V3), and the cut surface after cutting generally does not need to be surface processed. It has the advantages of high degree of automation, convenient use, high precision, high reliability, low price, and easy operation and maintenance. It is widely used in machine tool manufacturing, petrochemical equipment, light industrial machinery, shipbuilding, pressure vessels, engineering machinery, mining machinery, and electric power , Bridge construction, aerospace, steel structure and other industries.
Mechanical Structure Characteristics:
1. The base is assembled by high-strength aluminum alloy, with good stability, no deformation, and beautiful appearance;
2. The new modular chassis structure design, the cross arm, main console, machinery, and numerical control parts can be decomposed and combined. The outside of the chassis is equipped with a USB interface, a control cable interface, and a plasma arc starting interface to ensure the stable operation of the machine;
3. The beam is made of special aluminum alloy profile, which is light in weight and does not deform. The beam can be disassembled and assembled, which facilitates on-site transfer, packaging and transportation, and ensures that the verticality of the beam remains unchanged.
4. The more user-friendly main console directly faces the cutting site, which broadens the working perspective;
5. The walking part adopts precision gear and rack drive to ensure accuracy;
6. Stepping motor drive technology, and adopts high subdivision drive, with high precision and stable operation.
Specification: | MODEL | TPL-1625 | TPL-1630 | TPL-1640 |
|---|
| Cutting rage | 1600*2500(mm) | 1600*3000(mm) | 1600*4000(mm) |
| Idle Runing Speed | 7m/min |
| Cutting Speed | 2~6m/min |
| Cutting Thickness | 1~30mm for Plasma / 5~100mm for Flame |
| Cutting Accuracy | 0.5mm |
| Voltage | AC220V50HZ |
| Rated Power | 300W |
| Current Adjustment | Stepless continuously adjustable |
| Air compressor | Suggested air consumption：N180L/min, 6kg/cm2 |
| Customized is also available |
