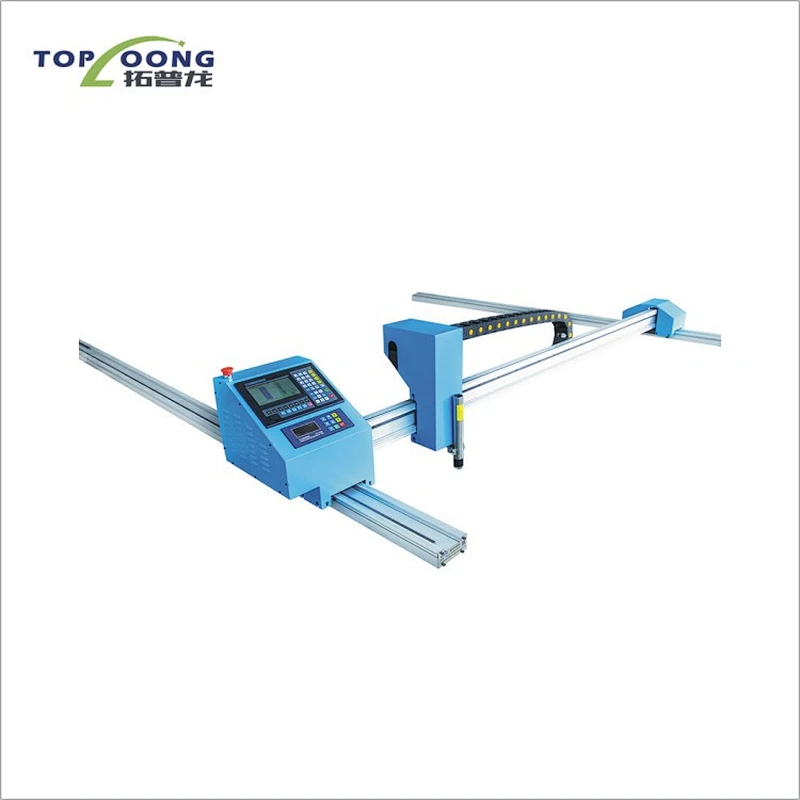

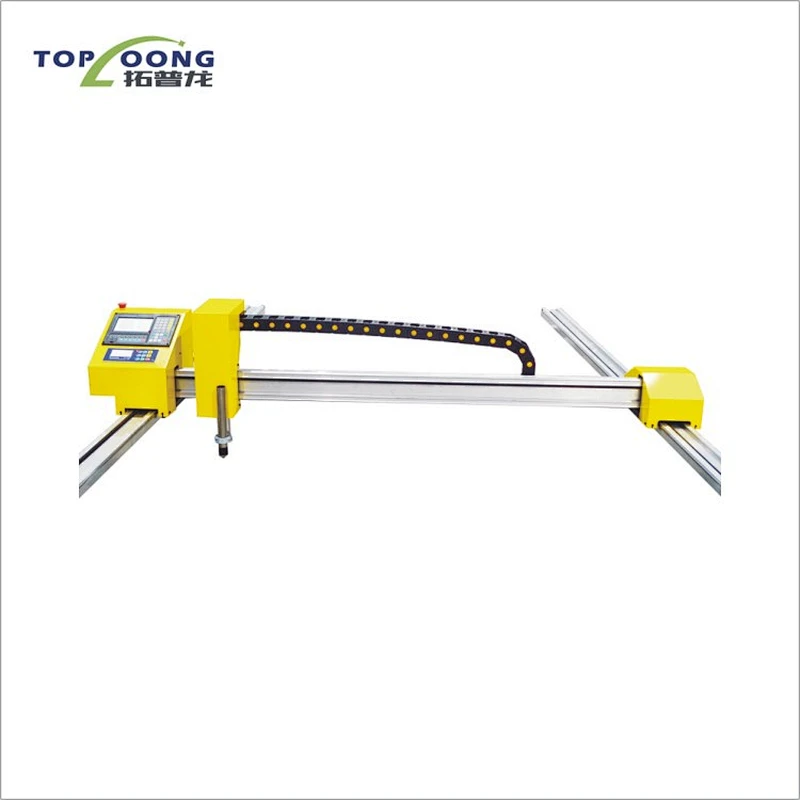

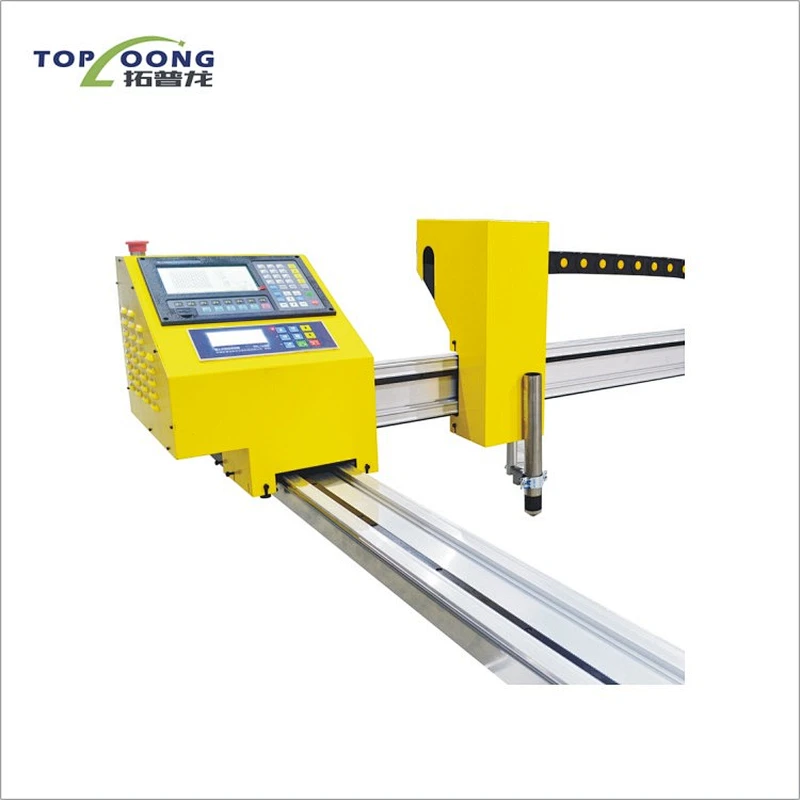

Light Gantry Cutting Machine
gantry steel cutting machine, gantry cutting machine, gantry profile cutting machine, gantry cutting, portable CNC cutting machine, portable plasma cutting machine, portable cnc plasma cutter, portable cnc plasma cutting machine, honeybee portable cnc cutting machine, portable table cnc cutting machine, portable cnc cutting machine table, portable cnc plasma cutting, automatic cnc cutting machine
The lightweight gantry cutting machine retains the design concept of a portable cutting machine, low cost, convenient for transportation, and suitable for various workplaces. Also increased the characteristics of the gantry cutting machine, using bilateral drive, so that the operation is stable and the cutting efficiency is higher. It can be equipped with various cutting output devices to cut various metal materials. The design of equipment track and beam structure is diversified, which is convenient for customers to upgrade and transform themselves.
Machine structure characteristics
1. The base is assembled by high-strength aluminum alloy, with good stability, no deformation, and beautiful appearance;
2. The machine can be manually disassembled, transported, and reassembled. The modular structure makes it easy to disassemble and assemble, which is very different from the traditional gantry;
3. The walking part is driven by precision gears and racks to ensure accuracy;
4. Stepping motor drive technology, and adopts high subdivision drive, with high precision and stable operation.
5. The structural characteristics support equipment upgrades, such as round pipe cutting machines, and also support customized transformation into other uses;
6. It is a patented producted developed independently by our company.
Specification: | MODEL | TPL-2460 | TPL-2960 | Others |
|---|
| Cutting rage | 2400*6000(mm) | 2900*6000(mm) | Customzied |
| Idle Runing Speed | 10m/min |
| Cutting Speed | 0.1~8m/min |
| Cutting Thickness | 1~30mm for Plasma / 5~100mm for Flame |
| Cutting Accuracy | 0.5mm |
| Voltage | AC220V50HZ |
| Rated Power | 300W |
| Current Adjustment | Stepless continuously adjustable |
| Air compressor | Suggested air consumption：N180L/min, 6kg/cm2 |
| Customized is also available |
gantry steel cutting machine, gantry cutting machine, gantry profile cutting machine, gantry cutting, portable CNC cutting machine, portable plasma cutting machine, portable cnc plasma cutter, portable cnc plasma cutting machine, honeybee portable cnc cutting machine, portable table cnc cutting machine, portable cnc cutting machine table, portable cnc plasma cutting, automatic cnc cutting machine
Widely used in various industries such as automobiles, locomotives, pressure vessels, chemical machinery, nuclear industry, general machinery, construction machinery, steel structures, etc.
